Sewer network operation

After its foundation in 1873 and the approval of the general swage plans, Budapest started the sewage construction with a great swing. With a remarkable anticipation, the main sewers were designed and built with a section size whose water collection capacity suits even todays needs.

The sewage of Budapest can nowadays be considered complete. The safe operation of the sewer network exceeding 5000 km in length and the collection of the daily 500-600 thousand m3 wastewater created in the city are performed by the Budapest Sewage Works Ltd.

Sewer inspection

For the purpose of unhindered sewer operation, the technical state and operation conditions of the network must be continuously controlled. During inspections, we explore any possible damages, irregularities occurred in the material, structure and works of the sewer and measure the height of the wastewater and the settled sludge.

The greatest part of such inspections is carried out by the most modern industrial camera equipment. We inspect the passable sewer sections via hand cameras, while the 15-80 cm diameter sections through automated cameras and the household sewers with the help of portable equipment that can be introduced with a rod. The footings are sent to a "control" vehicle furnished as a studio, where the data are computer-processed with the inspection software (IKAS32) according to the EU standard 13508-2. We perform the inspection of some 1000 km sewers every year.

Sewer cleaning

For the maintenance of the water collection capacity and in order to avoid undesired odour effects, the sewer network must be regularly cleaned of organic and inorganic matters and debris, as well as fats settled on the walls of the sewers. 21 different types of specialised machines are at our disposal for the sewer cleaning.

We clean a sewer length of at least 500-600 km every year. During preventive cleaning, we remove 30 000 m3 wastewater sludge from the network. Today, even the treatment and disposal of wastewater sludge is done in an environment-friendly way, with the most modern technology.

We use sewer washing specialised machines for the cleaning of great diameter and great runoff sewers, which work with a pressure of 150-180 bar and a water quantity of 210-325 l/min. With the most modern environment-saving specialised machines, we are not only able to wash and pull at the sewers, but also work more efficiently with the dehydration of the pulled sludge and the recycling of water.
For the removal of any possible failures (stoppage) occurring in the public sewers, we are at the disposition of the public with a toll free on-call number available day and night.

Sewer repair

There are several ten thousand cleaning manholes and sinkholes on the network. Since most of these are continuously subject to traffic, various failures can happen. Every year, we perform the replacement of several hundred sunken or damaged man-hole covers and sinkhole grids with the most modern technology and 24 hours a day. On the basis of the companys own patent, the covers built in with the help of the Duralevel System resist the burden of increased road traffic without sinking in a guaranteed way.
For the maintenance of the above-mentioned water collection capacity, the quick repair of the damaged sewer sections or connecting conduits on short sections is also necessary. We perform the repair of some 3 km conduits every year with the application of the environment-friendly "no dig" technology without excavation.

Contact:

Green number: 80/455-000
Phone:  (1) 455-4200, (1) 455-4123
E-mail: ugyelet@fcsm.hu

Some characteristic data of the Budapest sewer network:



Length of the sewer network: 5 383 km
Number of manhole covers: 150 000 pcs
Number of sinkhole grids: 85 000 pcs
Household sewer connections: 160 000 pcs
Wastewater quantity collected daily on average: 500-600 thousand m3

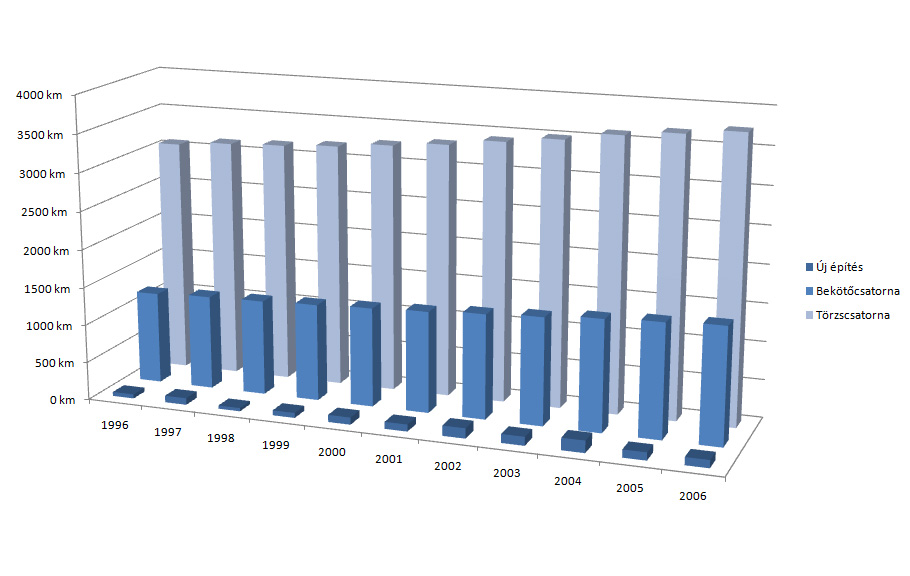

Types of the Budapest sewage network (in km)

Year Main sewer Connecting sewer Total Out of this: newly built
1996. 3073 1209 4282 54
1997.  3132 1238  4370  88
1998.  3160  1253  4413 43
1999.  3202  1277  4479 66
2000.  3267  1306  4573 94
2001.  3329  1336  4665 92
2002.  3419  1380  4799 134
2003.  3498  1417  4915 116
2004.  3605  1470  5075 160
2005.  3675  1504  5179 104
2006.  3745  1537  5282 103
2007. 3766 1549 5315 33
2008. 3777 1557 5334 19
2009. 3789 1563 5352 18
2010. 3814 1569 5383 31


Click this graph to view larger version
graph image 1

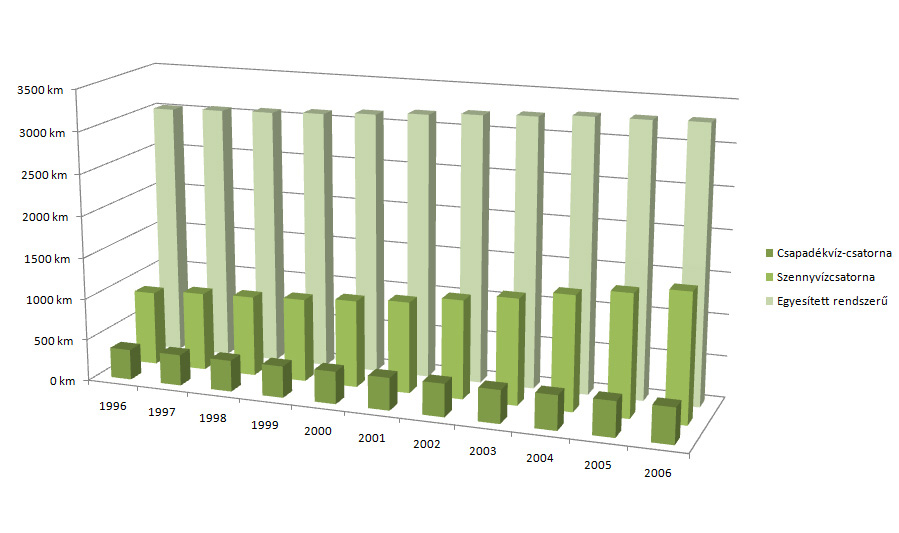

The distribution of the Budapest sewage network system (in km)

Year Wastewater
sewer
Rainwater
sewer
Combined system
sewer
Total
1996. 890 365 3027 4282
1997.  943 373 3054 4370
1998.  965  376  3072 4413
1999.  999  380  3100 4479
2000.  1047  390  3136 4573
2001.  1098  391  3176 4665
2002.  1189  397  3213 4799
2003.  1275  400  3240 4915
2004.  1380  415  3280 5075
2005.  1467  425  3287 5179
2006.  1549  431  3302 5282
2007. 1574 433 3308 5315
2008. 1588 435 3311 5334
2009. 1600 440 3312 5352
2010. 1609 445 3329 5383


Click this graph to view larger version

graph image 2

The complete sewage of Budapest (www.bpcsatornazas.hu)
